ITS Architecture

CVO20 - International Border Registration

This service package covers registration of importers, carriers, conveyance, and drivers for expedited clearance at the border. It represents enrollment in programs such as FAST, NEXUS, Customs Self Assessment, C-TPAT, PIP, ACI, and ACE.

Enterprise

Development Stage Roles and Relationships

Source	Destination	Role/Relationship
Border Inspection Administration Center Developer	Border Inspection Administration Center	Develops An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Border Inspection Administration Center Developer	Commercial Vehicle Administration Center Developer	Application Interface Specification The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Border Inspection Administration Center Developer	Fleet and Freight Management Center Developer	Application Interface Specification The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Border Inspection Administration Center Developer	Freight Distribution and Logistics Center Developer	Application Interface Specification The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Border Inspection Administration Center Developer	Intermodal Customer System Developer	Application Interface Specification The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Border Inspection Administration Center Developer	Personal Information Device Developer	Application Interface Specification The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Commercial Vehicle Administration Center Developer	Commercial Vehicle Administration Center	Develops An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Fleet and Freight Management Center Developer	Fleet and Freight Management Center	Develops An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Freight Distribution and Logistics Center Developer	Freight Distribution and Logistics Center	Develops An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Intermodal Customer System Developer	Intermodal Customer System	Develops An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Other Border Inspection Administration Centers Developer	Other Border Inspection Administration Centers	Develops An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Personal Information Device Developer	Personal Information Device	Develops An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships

Operations Stage Roles and Relationships

Source	Destination	Role/Relationship
Border Inspection Administration Center Manager	Border Inspection Administration Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Border Inspection Administration Center Owner	Border Inspection Administration Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Border Inspection Administration Center Owner	Commercial Vehicle Administration Center Owner	Information Exchange Agreement An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Border Inspection Administration Center Owner	Fleet and Freight Management Center Owner	Information Exchange Agreement An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Border Inspection Administration Center Owner	Freight Distribution and Logistics Center Owner	Information Exchange Agreement An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Border Inspection Administration Center Owner	Intermodal Customer System Owner	Information Exchange Agreement An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Border Inspection Administration Center Owner	Personal Information Device Owner	Information Provision Agreement An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Border Inspection Administration Center Supplier	Border Inspection Administration Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Commercial Vehicle Administration Center Manager	Commercial Vehicle Administration Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Commercial Vehicle Administration Center Owner	Commercial Vehicle Administration Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Commercial Vehicle Administration Center Supplier	Commercial Vehicle Administration Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Fleet and Freight Management Center Manager	Fleet and Freight Management Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Fleet and Freight Management Center Supplier	Fleet and Freight Management Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Freight Distribution and Logistics Center Manager	Freight Distribution and Logistics Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Freight Distribution and Logistics Center Owner	Freight Distribution and Logistics Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Freight Distribution and Logistics Center Supplier	Freight Distribution and Logistics Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Intermodal Customer System Manager	Intermodal Customer System	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Intermodal Customer System Owner	Intermodal Customer System	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Intermodal Customer System Supplier	Intermodal Customer System Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Other Border Inspection Administration Centers Manager	Other Border Inspection Administration Centers	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Other Border Inspection Administration Centers Owner	Other Border Inspection Administration Centers	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Other Border Inspection Administration Centers Supplier	Other Border Inspection Administration Centers Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Personal Information Device Manager	Personal Information Device	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Personal Information Device Owner	Personal Information Device	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Personal Information Device Supplier	Personal Information Device Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Maintenance Stage Roles and Relationships

Verification Stage Roles and Relationships

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSPec
Border Inspection Administration Center	Border Registration	2.8.4.1 Manage Registration For Border Inspection

Physical

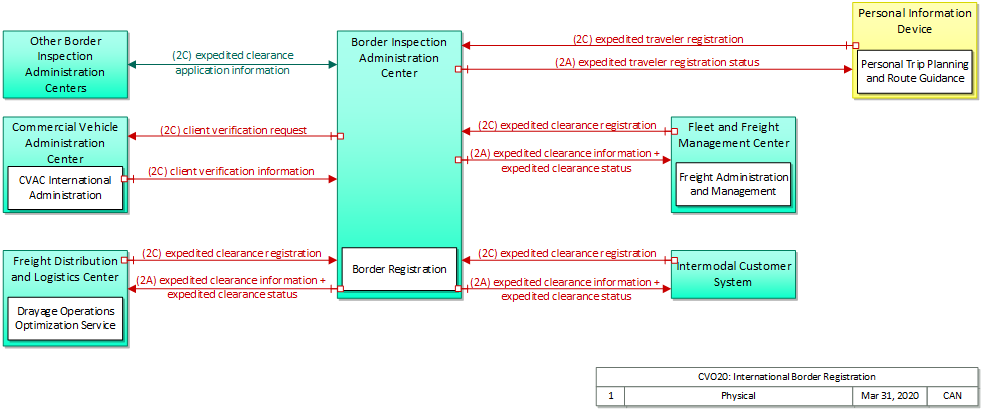

The physical diagram below can be downloaded in either SVG or PNG format.

To view physical diagram and legend click here.

Includes Physical Objects:

Physical Object	Class	Description
Border Inspection Administration Center	Center	'Border Inspection Administration Center' represents back-office systems and databases run by domestic and foreign governmental agencies responsible for the regulation of trade, and the enforcement of customs and immigration laws. These agencies include U.S. Department of Homeland Security (DHS) and its counterparts in Canada and Mexico. DHS includes components like Customs and Border Protection (CBP), Immigration and Customs Enforcement (ICE), and Transportation Security Administration (TSA). Other agencies include secondary trade agencies (e.g., U.S. Food and Drug Administration, U.S. Department of Agriculture, other USDOT departments, etc.), and agencies from other trading nations. The systems they manage coordinate activities related to the border crossings. These systems support import/export cargo processing and enforcement operations at the border, including programs such as FAST, Automated Commercial Environment (ACE), Nexus (Canada), SENTRI (Mexico), and US-VISIT.
Commercial Vehicle Administration Center	Center	The 'Commercial Vehicle Administration Center' performs administrative functions supporting credentials, tax, and safety regulations associated with commercial vehicles. It issues credentials, collects fees and taxes, and supports enforcement of credential requirements. It communicates with motor carriers to process credentials applications and collect fuel taxes, weight/distance taxes, and other taxes and fees associated with commercial vehicle operations. It also receives applications for, and issues special Oversize/Overweight and HAZMAT permits in coordination with cognizant authorities. It coordinates with other Commercial Vehicle Administration Centers (in other states/regions) to support nationwide access to credentials and safety information for administration and enforcement functions. It communicates with field equipment to enable credential checking and safety information collection at the roadside. It makes safety information available to qualified stakeholders to identify carriers and drivers that operate unsafely.
Fleet and Freight Management Center	Center	The 'Fleet and Freight Management Center' provides the capability for commercial drivers and fleet-freight managers to receive real-time routing information and access databases containing vehicle and/or freight equipment locations as well as carrier, vehicle, freight equipment and driver information. The 'Fleet and Freight Management Center' also provides the capability for fleet managers to monitor the safety and security of their commercial vehicle drivers and fleet.
Freight Distribution and Logistics Center	Center	The 'Freight Distribution and Logistics Center' provides intermodal logistics support and support for the efficient distribution of freight across transport systems and modes. This can include consolidation arrangements, warehousing, and consignor-to-consignee intermodal shipping arrangements. These capabilities may be provided as part of intermodal fleet management activities or can be provided by an independent logistics specialist.
Intermodal Customer System	Center	The 'Intermodal Customer System' represents organizations that engage in the shipment of freight, either originator (consigner or shipper) or recipient of the cargo shipment. They enable the movement of goods on routes that require the use of other modes of transportation such as heavy rail, air, sea, etc. The Intermodal Customer System includes those personnel responsible for the movement of freight across international borders.
Other Border Inspection Administration Centers	Center	Representing another Border Inspection Administration Center, 'Other Border Inspection Administration Centers' is intended to provide a source and destination for information exchange between international border administration functions. It enables traffic management activities to be coordinated across international borders.
Personal Information Device	Personal	The 'Personal Information Device' provides the capability for travelers to receive formatted traveler information wherever they are. Capabilities include traveler information, trip planning, and route guidance. Frequently a smart phone, the Personal Information Device provides travelers with the capability to receive route planning and other personally focused transportation services from the infrastructure in the field, at home, at work, or while en-route. Personal Information Devices may operate independently or may be linked with connected vehicle on-board equipment.

Includes Functional Objects:

Functional Object	Description	Physical Object
Border Registration	Border Registration' performs administrative functions relating to the electronic registration for credentials relating to border crossing.	Border Inspection Administration Center
CVAC International Administration	'CVAC International Administration' generates and processes the entry documentation necessary to obtain release of vehicle, cargo, and driver across an international border, report the results of the crossing event, and handle duty fee processing. It interfaces with the systems used by customs and border protection, immigration, carriers, and service providers (e.g., brokers) to generate, process, and store entry documentation.	Commercial Vehicle Administration Center
Drayage Operations Optimization Service	The 'Drayage Operations Optimization Service' provides a portal for shippers and receivers to post their loads in need of transport and provide an opportunity for commercial vehicles to find a load to haul on their trip back to/from an intermodal facility. It connects load matching services with container and chassis/equipment availability information and appointment/reservations services from the intermodal terminals to provide an optimized, regionally integrated view of intermodal container transport for drayage operators.	Freight Distribution and Logistics Center
Freight Administration and Management	'Freight Administration and Management' manages the movement of freight from source to destination. It interfaces to intermodal customers to setup and schedule transportation and coordinates with intermodal terminals and freight consolidation stations to coordinate the shipment. It coordinates with the appropriate government agencies to expedite the movement of trucks, their drivers, and their cargo across international borders. The application monitors the status of the freight and freight equipment (container, trailer, or chassis) and monitors freight location and compares it against the planned route.	Fleet and Freight Management Center

Includes Information Flows:

Information Flow	Description
client verification information	Information about carriers who have made border credential applications such as commercial drivers license information and carrier safety status.
expedited clearance application information	Application information that is shared between agencies.
expedited clearance information	Includes carrier ID, importer ID, broker ID, conveyance ID, driver ID, service options, and associated information that is used to support expedited border clearance.
expedited clearance registration	Registration of the importer, carrier, conveyance, and driver, as applicable, for border clearance programs such as FAST, Customs Self Assessment (Canada), C-TPAT (US), PIP (Canada), ACI (Canada), and ACE (US). Includes electronic filing of forms and associated payment.
expedited clearance status	Status of expedited clearance registration.
expedited traveler registration	Application for expedited traveler programs, such as NEXUS, Global Entry, Viajero Confiable, etc. Includes electronic filing of forms and associated payment. Applications for commercial vehicle driver may be completed through CVO services (see 'expedited clearance registration' flow).
expedited traveler registration status	Status of expedited traveler registration.

NOTE: external links provided in the above table for information flows that are common between Canada and U.S. ARC-IT, other information flows (without links) are Canadian-unique.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal
A. Support the economic vitality of the metropolitan area, especially by enabling global competitiveness, productivity, and efficiency;	Improve the national freight network, strengthen the ability of rural communities to access national and international trade markets, and support regional economic development

Associated Objective Categories

Objective Category
Freight Management: Border Crossing
Freight Management: Customer Satisfaction
Freight Management: Travel Time Delay
Freight Management: Permitting and Credentials Process

Associated Objectives and Performance Measures

Objective	Performance Measure
Decrease average crossing times at international borders by X minutes for each border in the region over Y years.	Average border crossing time for freight at international borders per year.
Increase ratings for customer satisfaction with freight mobility in the region among shippers, receivers, and carriers by X percent in Y years.	Percentage of customers satisfied with region's freight management practices.
Decrease hours of delay per 1,000 vehicle miles traveled on selected freight-significant highways by X percent in Y years.	Hours of delay per 1,000 vehicle miles on selected freight-significant highways.
Decrease point-to-point travel times on selected freight-significant highways by Y minutes within Y years.	Point-to-point travel times on selected freight-significant highways.
Reduce freight movement delays due to inspection	Average inspection time
Reduce freight movement delays due to inspection	Number of freight vehicles going through automated detection

NOTE: Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement
01	Border Administration needs to administratively support electronic registration for programs for expedited border crossing for travelers and shipments.	Border Inspection Administration	09	The center shall process applications for expedited customs programs for travelers.
			10	The center shall process applications for expedited border clearance programs for carriers and shippers.
			11	The center shall provide applicants for expedited border clearance programs with information, such as application status, results, supporting documentation for registration.

Source	Destination	Role/Relationship
Border Inspection Administration Center Installer	Border Inspection Administration Center	Installs An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Border Inspection Administration Center Owner	Border Inspection Administration Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Border Inspection Administration Center Owner	Border Inspection Administration Center Installer	Installation Agreement An agreement whereupon one party installs a system on behalf of a second party.
Border Inspection Administration Center Owner	Border Inspection Administration Center Supplier	Acquisition Agreement An agreement where one party agrees to provide a system (hardware and or software) to another party, typically in exchange for compensation.
Border Inspection Administration Center Supplier	Border Inspection Administration Center	Supplies The Enterprise that supplies a device or software product. The Supplier delivers the target resource to the Owner.
Commercial Vehicle Administration Center Installer	Commercial Vehicle Administration Center	Installs An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Commercial Vehicle Administration Center Owner	Commercial Vehicle Administration Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Commercial Vehicle Administration Center Owner	Commercial Vehicle Administration Center Installer	Installation Agreement An agreement whereupon one party installs a system on behalf of a second party.
Commercial Vehicle Administration Center Owner	Commercial Vehicle Administration Center Supplier	Acquisition Agreement An agreement where one party agrees to provide a system (hardware and or software) to another party, typically in exchange for compensation.
Commercial Vehicle Administration Center Supplier	Commercial Vehicle Administration Center	Supplies The Enterprise that supplies a device or software product. The Supplier delivers the target resource to the Owner.
Fleet and Freight Management Center Installer	Fleet and Freight Management Center	Installs An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center Installer	Installation Agreement An agreement whereupon one party installs a system on behalf of a second party.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center Supplier	Acquisition Agreement An agreement where one party agrees to provide a system (hardware and or software) to another party, typically in exchange for compensation.
Fleet and Freight Management Center Supplier	Fleet and Freight Management Center	Supplies The Enterprise that supplies a device or software product. The Supplier delivers the target resource to the Owner.
Freight Distribution and Logistics Center Installer	Freight Distribution and Logistics Center	Installs An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Freight Distribution and Logistics Center Owner	Freight Distribution and Logistics Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Freight Distribution and Logistics Center Owner	Freight Distribution and Logistics Center Installer	Installation Agreement An agreement whereupon one party installs a system on behalf of a second party.
Freight Distribution and Logistics Center Owner	Freight Distribution and Logistics Center Supplier	Acquisition Agreement An agreement where one party agrees to provide a system (hardware and or software) to another party, typically in exchange for compensation.
Freight Distribution and Logistics Center Supplier	Freight Distribution and Logistics Center	Supplies The Enterprise that supplies a device or software product. The Supplier delivers the target resource to the Owner.
Intermodal Customer System Installer	Intermodal Customer System	Installs An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Intermodal Customer System Owner	Intermodal Customer System	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Intermodal Customer System Owner	Intermodal Customer System Installer	Installation Agreement An agreement whereupon one party installs a system on behalf of a second party.
Intermodal Customer System Owner	Intermodal Customer System Supplier	Acquisition Agreement An agreement where one party agrees to provide a system (hardware and or software) to another party, typically in exchange for compensation.
Intermodal Customer System Supplier	Intermodal Customer System	Supplies The Enterprise that supplies a device or software product. The Supplier delivers the target resource to the Owner.
Other Border Inspection Administration Centers Installer	Other Border Inspection Administration Centers	Installs An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Other Border Inspection Administration Centers Owner	Other Border Inspection Administration Centers	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Other Border Inspection Administration Centers Owner	Other Border Inspection Administration Centers Installer	Installation Agreement An agreement whereupon one party installs a system on behalf of a second party.
Other Border Inspection Administration Centers Owner	Other Border Inspection Administration Centers Supplier	Acquisition Agreement An agreement where one party agrees to provide a system (hardware and or software) to another party, typically in exchange for compensation.
Other Border Inspection Administration Centers Supplier	Other Border Inspection Administration Centers	Supplies The Enterprise that supplies a device or software product. The Supplier delivers the target resource to the Owner.
Personal Information Device Installer	Personal Information Device	Installs An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Personal Information Device Owner	Personal Information Device	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Personal Information Device Owner	Personal Information Device Installer	Installation Agreement An agreement whereupon one party installs a system on behalf of a second party.
Personal Information Device Owner	Personal Information Device Supplier	Acquisition Agreement An agreement where one party agrees to provide a system (hardware and or software) to another party, typically in exchange for compensation.
Personal Information Device Supplier	Personal Information Device	Supplies The Enterprise that supplies a device or software product. The Supplier delivers the target resource to the Owner.

Source	Destination	Role/Relationship
Border Inspection Administration Center Maintainer	Border Inspection Administration Center	Maintains An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Border Inspection Administration Center Manager	Border Inspection Administration Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Border Inspection Administration Center Manager	Border Inspection Administration Center Maintainer	System Maintenance Agreement An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Border Inspection Administration Center Owner	Border Inspection Administration Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Border Inspection Administration Center Supplier	Border Inspection Administration Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Commercial Vehicle Administration Center Maintainer	Commercial Vehicle Administration Center	Maintains An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Commercial Vehicle Administration Center Manager	Commercial Vehicle Administration Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Commercial Vehicle Administration Center Manager	Commercial Vehicle Administration Center Maintainer	System Maintenance Agreement An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Commercial Vehicle Administration Center Owner	Commercial Vehicle Administration Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Commercial Vehicle Administration Center Supplier	Commercial Vehicle Administration Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Fleet and Freight Management Center Maintainer	Fleet and Freight Management Center	Maintains An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Fleet and Freight Management Center Manager	Fleet and Freight Management Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Fleet and Freight Management Center Manager	Fleet and Freight Management Center Maintainer	System Maintenance Agreement An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Fleet and Freight Management Center Supplier	Fleet and Freight Management Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Freight Distribution and Logistics Center Maintainer	Freight Distribution and Logistics Center	Maintains An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Freight Distribution and Logistics Center Manager	Freight Distribution and Logistics Center	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Freight Distribution and Logistics Center Manager	Freight Distribution and Logistics Center Maintainer	System Maintenance Agreement An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Freight Distribution and Logistics Center Owner	Freight Distribution and Logistics Center	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Freight Distribution and Logistics Center Supplier	Freight Distribution and Logistics Center Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Intermodal Customer System Maintainer	Intermodal Customer System	Maintains An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Intermodal Customer System Manager	Intermodal Customer System	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Intermodal Customer System Manager	Intermodal Customer System Maintainer	System Maintenance Agreement An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Intermodal Customer System Owner	Intermodal Customer System	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Intermodal Customer System Supplier	Intermodal Customer System Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Other Border Inspection Administration Centers Maintainer	Other Border Inspection Administration Centers	Maintains An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Other Border Inspection Administration Centers Manager	Other Border Inspection Administration Centers	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Other Border Inspection Administration Centers Manager	Other Border Inspection Administration Centers Maintainer	System Maintenance Agreement An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Other Border Inspection Administration Centers Owner	Other Border Inspection Administration Centers	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Other Border Inspection Administration Centers Supplier	Other Border Inspection Administration Centers Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Personal Information Device Maintainer	Personal Information Device	Maintains An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Personal Information Device Manager	Personal Information Device	Manages The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Personal Information Device Manager	Personal Information Device Maintainer	System Maintenance Agreement An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Personal Information Device Owner	Personal Information Device	Owns An Enterprise has financial ownership and control over the Resource. An Enterprise that Owns a resource is considered accountable for the resource and all of its contents. The Owns role includes ownership during Operations and Maintenance and also Acquisition during the Installation phase. The entity that takes the "owns" role is ultimately responsible for ensuring the resource provides its promised functionality, and for securing data the resources holds and exchanges. The owner is similarly responsible for the facilities inherent to the resource that are used to exchange data with other systems. The owner is responsible for ensuring that any data stored by the resource and any data communicated by the resource are protected to the extent necessary considering the contents of the data and the consequences of its exposure or alteration.
Personal Information Device Supplier	Personal Information Device Owner	Warranty A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
